JCM PIDS Scripting

PIDS Scripting allows you to use JavaScript to control Scripted PIDS Preset contents.

Concept

Draw/Rendering

JCM PIDS Scripting allows you to draw either a Text or Texture onto the Minecraft World.

When drawn, they are just regular polygons rendered onto the Minecraft World rather than being a 2D plane with a texture. Therefore it is possible for elements to overflow beyond the PIDS screen, and it is the developer responsibility to ensure such events should not happen.

If you absolutely require sophisticated image processing/clipping, you may follow this section to draw and manipulate a texture and draw it onto a 2D Plane. However it may result in slightly slower performance/higher memory usage.

Draw Layer/Order

The draw order/z-index is depicted by the order the image is drawn in. Whichever elements gets drawn later, whichever element goes in-front. See the image below: (z-differences is exaggerated for demonstration purposes)

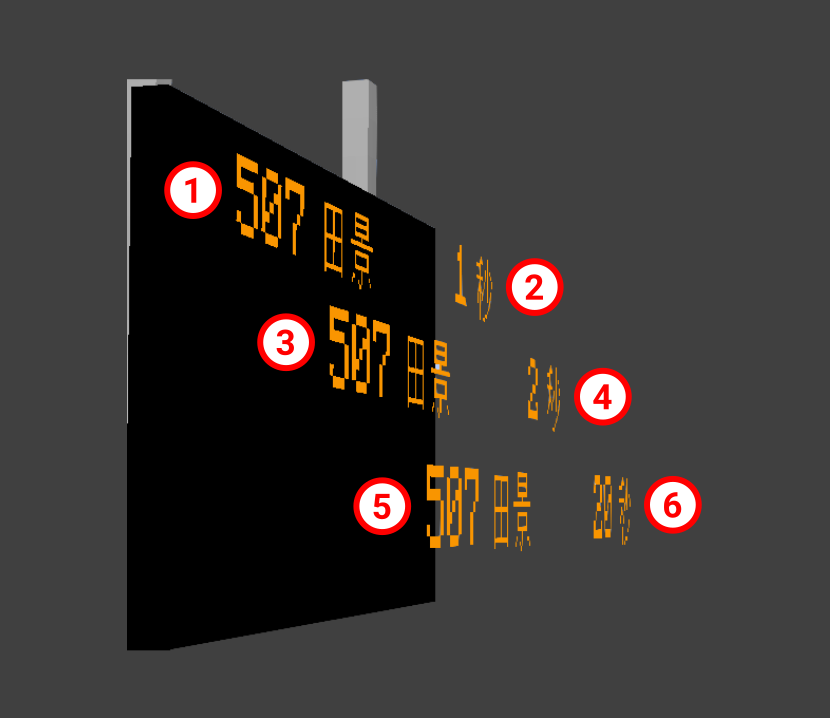

The number in the circle depicts the order in which the element is drawn in. 1 gets drawn first, then 2, 3, 4, 5 and finally 6.

As such, element 6 is the frontmost element, which can cover element 1-5 if overlapped.

Global Environment

A script is evaluated & executed when a PIDS Preset is loaded during the resource-pack loading phase.

Therefore, the same type of PIDS Preset will use the same working environment (global variables and etc).

Code written in top-level space outside of functions will run when a resource package is loaded, and can be used to load resources such as models and textures. It is recommended to store resources (such as models, fonts and textures) in global variables, which do not need to be different for each PIDS block, to avoid excessive memory usage caused by loading a copy of the same content for each PIDS.

Implementation

Registering a Scripted PIDS Preset

A preset is automatically considered as a Scripted PIDS Preset by specifying either scriptFiles or scriptTexts property in joban_custom_resources.json:

{
  "pids_images": [
    {
      "id": "pids_tut",
      "name": "JS Tutorial Preset",
      "scriptTexts": ["print('Goodbye World');"],
      "scriptFiles": ["jsblock:scripts/pids_tut.js"]
    }
  ]
}

scriptFiles points to the list of script file to load.

scriptTexts allows you to directly write JS inside, but should only be used for simple variable declaration.

Note: At the moment, mixing Scripted PIDS Preset and JSON PIDS Preset is not possible.

Called Functions

Your script should include the following functions that JCM will call as needed:

function create(ctx, state, pids) { ... }
function render(ctx, state, pids) { ... }
function dispose(ctx, state, pids) { ... }

Functions	Description
create	It is called when a PIDS is rendered for the first time and can be used to perform some initialization operations, for example, to create dynamic textures.
render	This function is called at-most once per frame. It is used to draw contents onto the PIDS. In practice however, the code is executed in a separate thread so as not to slow down FPS. If it takes too long to execute the code, it may be called once every few frames instead of every frame.
dispose	Called when a PIDS Block goes out of sight. Can be used for things like releasing the dynamic textures to free up memory.

JCM calls these functions with three parameters, each of which is described below.

Parameter	Description
First (ctx)	Used to pass rendering actions to JCM. Type — PIDSScriptContext.
Second (state)	A JavaScript object associated with a single PIDS Block. The initial value is {}, and its content can be set arbitrarily to store what should be different for each PIDS Block.
Third (pids)	Used to get the status of pids and arrivals. Type — PIDSBlockEntity

The following lists all the rendering control operations that can be performed and all the information that can be obtained about PIDS.

API Reference

Check JCM Version

You can obtain JCM version by using Resources.getAddonVersion("jcm").
This would return a string formatted like: 2.0.0-beta.5

Rendering Related

PIDSScriptContext

Functions And Objects	Description
PIDSScriptContext.setDebugInfo(key: string, value: object)	Output debugging information in the upper left corner of the screen. You need to enable Script Debug Overlay in JCM Settings to display it. key is the name of the value value is the content (value will be converted to string for display, except for GraphicsTexture which will display the entire texture image on the screen).
PIDSScriptContext.renderManager(): RenderManager	Obtain a RenderManager instance, which can be used to render stuff onto the Minecraft World. The base position are set to the block's position.
PIDSScriptContext.soundManager(): SoundManager	Obtain a SoundManager instance, which can be used to play sound onto the Minecraft World. The base position are set to the block's position.

Text

Functions And Objects	Description
Text.create() Text.create(comment: string)	Create a new text object
Text.pos(x: number, y: number): Text	Set the X and Y position of the element
Text.size(w: number, h: number): Text	Set the width and height of the element (Used in conjunction with Text.stretchXY() and Text.scaleXY())
Text.text(str: string): Text	Set the text content to str
Text.scale(i: double): Text	Set the text's scale to i. Defaults to 1
Text.leftAlign(): Text	Align the text to the left (Default)
Text.centerAlign(): Text	Align the text to the center
Text.rightAlign(): Text	Align the text to the right
Text.shadowed(): Text	Add shadow to the drawn text
Text.italic(): Text	Set the text style to Italic
Text.bold(): Text	Set the text style to Bold
Text.stretchXY(): Text	Text Overflow Mechanism: When text overflowed beyond it's size, stretch the text on the overflowing axis to fit
Text.scaleXY(): Text	Text Overflow Mechanism: When the text overflowed beyond it's size, stretch the text on both axis to fit (Keep aspect ratio)
Text.wrapText(): Text	Text Overflow Mechanism: When the text overflowed beyond it's size, split the text into the next line without any scaling.
Text.marquee(): Text	Text Overflow Mechanism: When the text overflowed beyond it's size, draw a portion of the text at a time with scrolling animation
Text.fontMC(): Text	Use vanilla Minecraft's font
Text.matrices(matrices: Matrices): Text	Apply a matrices to the current text object
Text.font(id: string): Text Text.font(id: Identifier): Text	Set the font by it's ID. Defaults to mtr:mtr The font should be loaded in Minecraft via the font json format. This does not have any effect if Use Custom MTR Font is disabled in MTR mod's Config.
Text.color(color: number): Text	Set the text color, in RGB format.
Text.draw(ctx: PIDSScriptContext): void	Mark the text as something that should be rendered to the PIDS.

Texture

Functions And Objects	Description
Texture.create() Texture.create(comment: string)	Create a new texture object
Texture.pos(x: number, y: number): Texture	Set the X and Y position of the element
Texture.size(w: number, h: number): Texture	Set the width and height of the element
Texture.texture(id: string): Texture Texture.texture(id: Identifier): Texture	Set the texture ID to draw. Note that the texture ID should point to a PNG file or an .mcmeta file.
Texture.color(color: number): Texture	Set the text color, in RGB format.
Texture.uv(u2: number, v2: number): Texture Texture.uv(u1: number, v1: number, u2: number, v2: number): Texture	Set the UV coordinates
Texture.matrices(matrices: Matrices): Texture	Apply a matrices to the current texture object
Texture.draw(ctx: PIDSScriptContext): void	Mark the texture as something that should be rendered to the PIDS.

PIDS Object Related

PIDSBlockEntity

Functions And Objects	Description
PIDSBlockEntity.type: string	Return the type of PIDS used, possible value are: - rv_pids - rv_pids_sil_1 - rv_pids_sil_2 - lcd_pids - pids_projector - pids_1a
PIDSBlockEntity.width: number	The full width of the available PIDS screen area.
PIDSBlockEntity.height: number	The full height of the available PIDS screen area.
PIDSBlockEntity.rows: number	The number of arrival rows supported by the PIDS Block
PIDSBlockEntity.isRowHidden(i: number): boolean	Returns whether the arrival for that row is hidden. (via PIDS Config)
PIDSBlockEntity.getCustomMessage(i: number): string	Returns the custom message configured for that row via PIDS Config. Empty string ("") if not set.
PIDSBlockEntity.isPlatformNumberHidden(): boolean	Returns whether the platform number is set to hidden. (via PIDS Config)
PIDSBlockEntity.blockPos(): Vector3f	Returns the coordinate of which the PIDS block is located.
PIDSBlockEntity.isKeyBlock(): boolean	Returns whether the current block is a unique block within a PIDS pair (e.g. Identify 1 side of a dual-sided PIDS)
PIDSBlockEntity.station(): Station	Returns the station area that this PIDS is in. null if not in any station.
PIDSBlockEntity.arrivals(): ArrivalEntries	Returns the arrivals obtained for the PIDS.

ArrivalEntries

Functions And Objects	Description
ArrivalEntries.get(i: number): ArrivalEntry?	Returns the ith arrival entry. null if there's no ith arrival entry or no arrival information. Note that only up to 10 arrivals is fetched per platform, see this issue for details.
ArrivalEntries.mixedCarLength(): boolean	Returns whether the list of arrivals have arrival entry with different cars.
ArrivalEntries.platforms(): ObjectArrayList<Platform>	Returns the platforms that all arrival entry is stopping at.

ArrivalEntry

Represent a single arrival entry.

Functions And Objects	Description
ArrivalEntry.destination(): string	Returns the destination name of the arrival entry. (Usually the destination's station, or a custom destination string)
ArrivalEntry.arrivalTime(): number	Returns the epoch time (in Millisecond) the train is arriving at. Use new Date(value: number)to obtain a JS Date object of the arrival time.
ArrivalEntry.departureTime(): number	Returns the epoch time (in Millisecond) the train is departing at. Use new Date(value: number)to obtain a JS Date object of the departure time.
ArrivalEntry.deviation(): number	Returns the deviation[?]
ArrivalEntry.realtime(): boolean	Returns whether the arrival entry is scheduled (i.e. Train not departed), or a real-time estimation (i.e. Train running)
ArrivalEntry.departureIndex(): number	Returns the departure index[?]
ArrivalEntry.terminating(): boolean	Returns whether the arrival entry is terminating its service at the current platform.
ArrivalEntry.route(): SimplifiedRoute	Returns the SimplifiedRoute object that the train is running on. Might be null if the route cannot be found (e.g. Deleted)
ArrivalEntry.routeId(): number	Returns the id of the route that the train is running on.
ArrivalEntry.routeName(): string	Returns the name of the route that the train is running on.
ArrivalEntry.routeNumber(): string	Returns the route number string (Previously called LRT Route Number), empty string if route number is not set.
ArrivalEntry.routeColor(): number	Returns the color of the route that the train is running on.
ArrivalEntry.circularState(): Route.CircularState	Returns the circular state of the route that the train is running on.
ArrivalEntry.platform(): Platform	Returns the platform object that the train is approaching towards.
ArrivalEntry.platformId(): number	Returns the id of the platform that the train is approaching towards.
ArrivalEntry.platformName(): string	Returns the name of the platform that the train is approaching towards.
ArrivalEntry.carCount(): number	The car length of the train in that arrival entry.
ArrivalEntry.cars(): List<CarDetails>	Returns a List containing CarDetails for each car.

Transport Simulation Core Related

Transport Simulation Core (TSC) is the backend serving MTR 4. Below are some of the classes in TSC, which may be returned by JCM above.

Platform

Functions And Objects	Description
Platform.routes: ObjectAVLTreeSet<Route>	A list of routes that goes through this platform.
Platform.routeColors: IntAVLTreeSet	All colors of route that goes through this platform.
Platform.getName(): string	Returns the platform name.
Platform.getId(): number	Returns the platform ID.
Platform.getDwellTime(): number	The dwell time duration of the platform in millisecond.

SimplifiedRoute

Functions And Objects	Description
SimplifiedRoute.getName(): string	Returns the platform name.
SimplifiedRoute.getId(): number	Returns the route ID.
SimplifiedRoute.getColor(): number	Returns the color of the route.
SimplifiedRoute.getCircularState(): Route.CircularState	Returns the circular state of the route
SimplifiedRoute.getPlatforms(): ObjectArrayList<SimplifiedRoutePlatform>	Returns a SimplifiedRoutePlatform object, see below

SimplifiedRoutePlatform

Functions And Objects	Description
SimplifiedRoutePlatform.getPlatformId(): number	Returns the id of the platform.
SimplifiedRoutePlatform.getStationId(): number	Returns the id of the belonging station area.
SimplifiedRoutePlatform.getStationName(): string	Returns the name of the belonging station area.
SimplifiedRoutePlatform.getDestination(): string	Returns the destination string of this platform in the route

CarDetails

Functions And Objects	Description
CarDetails.getVehicleId(): string	Returns the id of the vehicle car (As defined in Resource Packs)
CarDetails.getOccupancy(): number	Returns the occupancy level. Only returns 0 at the moment.

Using AWT Graphics/Dynamic Textures

While not a regular tested use case for PIDS, you can create a Dynamic Textures and draw it onto a PIDS:

importPackage(java.awt);

function create(ctx, state, pids) {
    state.tex = new GraphicsTexture(pids.width, pids.height);
}

function render(ctx, state, pids) {
    let g = state.tex.graphics;
    g.setColor(Color.RED);
    g.fillRect(0, 0, pids.width, pids.height);
    g.setColor(Color.GREEN);
    g.fillRect(0, 0, Math.abs(Math.sin(Timing.elapsed())) * pids.width, pids.height);

    state.tex.upload();

    Texture.create("Dynamic Texture")
    .texture(state.tex.identifier)
    .size(pids.width, pids.height)
    .draw(ctx);
}

function dispose(ctx, state, pids) {
    state.tex.close();
}
