Minecraft Related

At times it may be desirable to access and invoke Minecraft-specific methods within scripts (Whether it's to know more about the surrounding environment or you want to display a chat message). However because the Minecraft version JCM support all have obfuscation enabled, it means there's not an intuitive and cross-loader way to access it.

In JCM, we provide wrapper class to allow invoking certain Minecraft methods. You may also come across these classes in other places (e.g. PlayerEntity/ItemStack in eyecandy block use event) as it is the most natural and straightforward way to represent a Minecraft object.

MinecraftClient#

This has several utilities method related to the Minecraft Client.

Functions Description
static MinecraftClient.worldIsRaining(): boolean Is it raining in the world?
static MinecraftClient.worldIsThundering(): boolean Is it thundering in the world?
static MinecraftClient.worldIsRainingAt(pos: Vector3f): boolean Is it raining and getting wet in a given chunk?
static MinecraftClient.worldDayTime(): number Returns the in-game world time in ticks.
static MinecraftClient.blockLightAt(pos: Vector3f): number Return the block light at the specified position.
static MinecraftClient.skyLightAt(pos: Vector3f): number Return the sky light at the specified position.
static MinecraftClient.lightLevelAt(pos: Vector3f): number Return the light level at the specified position.
Sourced from both sky light and block light, prefers the one which is lower.
static MinecraftClient.narrate(message: string): void This calls the Minecraft narrator to narrate the message.
static MinecraftClient.localPlayer(): PlayerEntity Obtain the PlayerEntity of the current player.
static MinecraftClient.getScoreboardScore(objectiveName: string, playerName: string): void This obtain the player's scoreboard value on the specified scoreboard objective
static MinecraftClient.displayMessage(message: String, actionBar: boolean): void This displays the message as an in-game chat message. If action bar is true, it will display on the action bar instead. (Above inventory hotbar)
static MinecraftClient.displayMessage(message: VanillaText, actionBar: boolean): void This displays the corresponding VanillaText as an in-game chat message. If action bar is true, it will display on the action bar instead. (Above inventory hotbar)
static MinecraftClient.gamePaused(): boolean Returns whether the game is paused.
This may be used to pause rendering/texture update to reduce CPU usage when paused.
Note: MTR 4/TSC does not pause its simulation even when the game is paused!

VanillaText#

Minecraft employs it's own text format called the Text Component Format. This provides access to create these components, which may then be used in MinecraftClient#displayMessage to produce formatted texts.

Functions Description
static VanillaText.literal(str: string): VanillaText Creates a text component with the str parameter as the content
static VanillaText.translatable(key: string, placeholders: objects...): VanillaText Creates a text component with the key being the translation key, which can be adapted to the user's current language. Any additional parameters for placeholders may be specified in case a translation supports string substitution
VanillaText.append(other: VanillaText): VanillaText This append another VanillaText after the current VanillaText, the styles for each VanillaText are retained.
VanillaText.withBold(): VanillaText Set the VanillaText text to bold
VanillaText.withItalic(): VanillaText Set the VanillaText text to italic
VanillaText.withFont(id: Identifier): VanillaText Set the VanillaText text to use a specific font id as the displayed font, which is registered by resource pack
VanillaText.withColor(rgb: int): VanillaText This sets the corresponding RGB code as the color to display the text
VanillaText.withColor(colorName: string): VanillaText This sets the color to display the text
VanillaText.getString(): string This returns the literal text content of the VanillaText. Useful when paired with VanillaText.translatable() so you can access the string localized in the user's language.

Example#

Displaying a chat message every 1.5s in an eyecandy script.

example.js
function create(ctx, state, eyecandyBlockEntity) {
    state.outputInterval = new RateLimit(1.5); // Every 1.5s
}

function render(ctx, state, eyecandyBlockEntity) {
    if(state.outputInterval.shouldUpdate()) {
        // Create a standalone text
        let textILoveJs = VanillaText.literal(" I love JavaScript /s")
                            .withColor(0x00BBFF)
                            .withBold();

        // or we can append both text (Hello / World) inline
        let textHelloWorld = VanillaText.literal("Hello ")
            .withItalic()
            .withColor("RED")
            .append(
                VanillaText.literal("world!")
                .withItalic()
                .withColor(0x00FF00)
                .withFont(Resources.id("mtr:mtr"))
            );

        let textToSend = textHelloWorld.append(textILoveJs);
        MinecraftClient.displayMessage(textToSend, false);
    }
}

VoxelShape#

This allows you to construct the outline shape of a block, which can be used to allow setting a custom outline shape to an Eyecandy block.

Functions Description
static VoxelShape.empty(): VoxelShape Returns an empty VoxelShape
static VoxelShape.fullCube(): VoxelShape Returns a VoxelShape that is equivalent to a 16x16 rectangle block
static VoxelShape.create(minX: number, minY: number, minZ: number, maxX: number, maxY: number, maxZ: number): VoxelShape Returns a VoxelShape with the specified size.
The max[?] parameter must always be equal/larger than the min[?] parameters.
Unit are 16x16 (16 = 1 full block)
static VoxelShape.create(minX: number, minY: number, minZ: number, maxX: number, maxY: number, maxZ: number, facing: Direction): VoxelShape Returns a VoxelShape with the specified size, rotated according to facing.
The max[?] parameter must always be equal/larger than the min[?] parameters.
Unit are 16x16 (16 = 1 full block)
VoxelShape.combine(other: VoxelShape): VoxelShape This returns a new VoxelShape where two different VoxelShape are merged together.

Example#

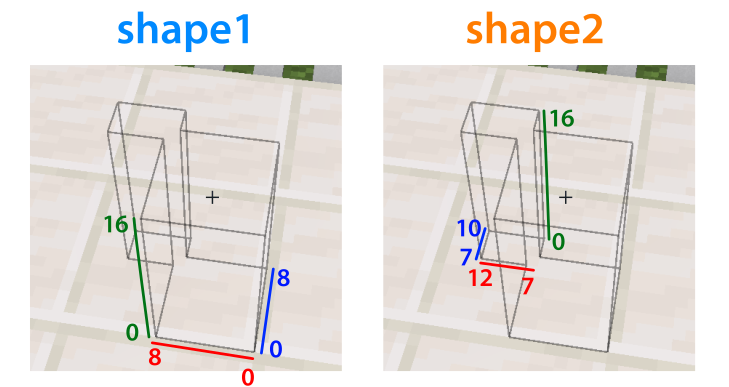

Setting an outline shape for an eyecandy:

example.js
function create(ctx, state, eyecandyBlockEntity) {
    const shape1 = VoxelShape.create(0, 0, 0, 8, 16, 8, eyecandyBlockEntity.facing());
    const shape2 = VoxelShape.create(7, 0, 7, 12, 16, 10, eyecandyBlockEntity.facing());
    const myShape = shape1.combine(shape2);
    ctx.setOutlineShape(myShape);
}

ItemStack#

An Item Stack (The thing that takes up your hotbar slot).

This is usually supplied/obtainable via events/code rather than something to be constructed by your script.

Note on Item vs ItemStack

In Minecraft, there's a distinction between an Item (An immutable representation of an item, with an id) and ItemStack (An instance of that item with a specific amount/durability/enchanting/custom names/Custom NBT which can be changed at any time).

Currently this distinction is not made in the Scripting API.

Functions Description
ItemStack.itemId(): string Obtain the item id (e.g. mtr:rail)`
ItemStack.translationId(): string Obtain the translation key of the item
ItemStack.empty(): boolean Whether the itemstack is considered empty (e.g. Air)
e.g. If this is true when trying to obtain the item the player is holding, this means the player isn't holding anything.
ItemStack.count(): number Get the amount of the ItemStack

PlayerEntity#

Represents a player entity in the game.

This is usually supplied/obtainable via events/code rather than something to be constructed by your script.

Functions Description
PlayerEntity.uuid(): string Obtain the entity's uuid as a string
PlayerEntity.hasPermissionLevel(level: number): boolean Whether the player has a certain "OP" level.
Note: This is completely client-side only, do not use this for serious permission/authentication checking!
PlayerEntity.pos(): Vector3f Obtain the current position of the player, as a Vector3f
PlayerEntity.blockPos(): Vector3f Obtain the current block position of the player, as a Vector3f
PlayerEntity.playerName(): string Obtain the player's canonical name/username (Same as those registered in Mojang's/Microsoft server)
PlayerEntity.isHoldingItem(id: Identifier): boolean Whether player is holding an item with the corresponding Identifier on either hand.
PlayerEntity.mainHandItem(): ItemStack Obtain the ItemStack in the player's main hand
PlayerEntity.offHandItem(): ItemStack Obtain the ItemStack in the player's secondary/offhand
PlayerEntity.activeItem(): ItemStack Obtain the ItemStack in the player's hands, preferring main hand.
