Building a Scripted PIDS Preset

This is a step-by-step tutorial on building a Scripted PIDS Preset using JavaScript.

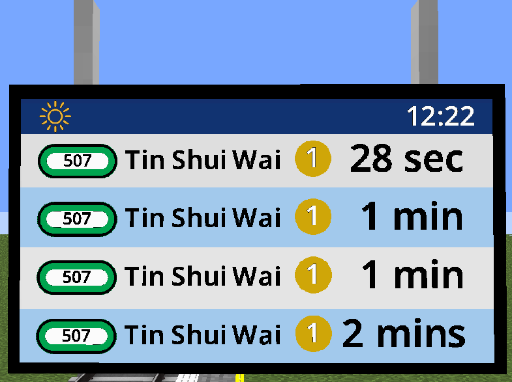

By the end of the tutorial, you would have built a Fictional LRT (Light Rail) version of the MTR Railway Vision PIDS, which can adapt to Custom PIDS Messages and handling long string.

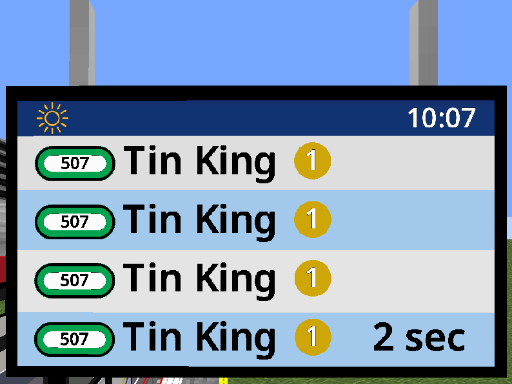

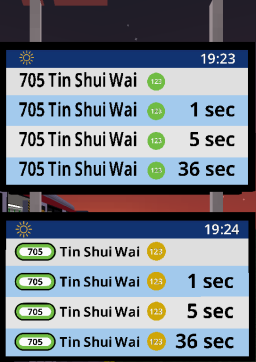

(Top: Default RV PIDS Preset, Bottom: Custom JS-based PIDS Preset)

Prerequisite

Before beginning this tutorial, you should setup a world with MTR 4 installed:

Note

A fully operational route is not required. If your route jams, the tutorial can still continue, as long as there's any train on the route.

1. Create a route with 2 stations:
   1. 1st station named 屯門碼頭|Tuen Mun Ferry Pier
   2. 2nd station named 田景|Tin King
2. Name the route 輕鐵|Light Rail with Route Number 507 and color code 00A650
3. Place a single PIDS within your view distance, which can display the arrivals of the routes
4. Create a siding, a depot, assign the route to the depot and configure the schedule so your vehicle departs.
   1. Setting your siding to allow unlimited vehicles is benefical for this tutorial as you would mostly be viewing upcoming schedules. Unlimited vehicles prevents situations where you would run out of vehicles for the PIDS to display.

Note

Before starting, please note that:

• Repeated/Irrelevant code may be abbreviated with the // ... comment notation.
• • Surrounding codes may be shown to ensure the readers don't get lost.
• Over the course of this tutorial, we may insert or change codes in our script. The affected lines are highlighted in this documentation, indicating such lines needs updating.
• This article is best read with basic level of programming knowledge (Doesn't have to be JavaScript). You may still finish the tutorial without such knowledge, but may find some difficulty grasping some concept as this article is not meant to be a programming 101.
• You don't have to finish the tutorial in one go :)

Getting started

To get started, download the tutorial resource pack here, extract the zip and put it in Minecraft's Resource Pack folder.

This resource pack is specifically set-up for this tutorial, and therefore the JS scripts inside are (mostly) empty. However we can still take a look at how a Scripted PIDS Preset is set-up.

joban_custom_resources.json

The file will look like this:

{
  "pids_images": [
    {
      "id": "pids_tut",
      "name": "DIY JS Preset",
      "scriptFiles": ["jsblock:scripts/pids_tut.js"]
    }
  ]
}

This is mostly the same from a JSON PIDS Preset, except the scriptFiles property which is a JSON array that points to the scripts used for this preset.

Multiple scripts can be used for the same preset as well. However to keep things simple, we are simply going to use 1 script to control the rendering: scripts/pids_tut.js.

scripts/pids_tut.js

By opening up pids_tut.js in the scripts folder in a text editor (Notepad etc.), we can see the following script:

function create(ctx, state, pids) {
  // Your custom logic here...
}

function render(ctx, state, pids) {
  // Your custom logic here...
}

function dispose(ctx, state, pids) {
  // Your custom logic here...
}

Our custom logic can be placed between each curly brackets for each of the function. As seen, there are a total of 3 functions: create, render, dispose.

• The create function is called when our PIDS enters the player's view. So this means that when a player switches the PIDS preset to our preset, or if a player is approaching a station with our PIDS in sight, everything within the curly bracket of the create function will be run.

• The render function is called every frame (So 60fps = 60 times per second). Notice the asterisk? Because running scripts simply takes time, even if a short amount of time. JCM will try to*, whenever possible, call your function every frame. However if there are too many scripts or your script is slow, then it may not be called every frame.

• The dispose function is called when a PIDS Preset is switched away from, or the PIDS is no longer in sight for the player. This can be used to do clean-up work in complex PIDS that stores texture etc.

The most useful one we are going to use is the render function, since this is where we can obtain up-to-date information and dynamically render our PIDS.

But let's not get ahead of ourselves, and instead start from something very simple: A hello world script.

Hello, World!

1. Open up scripts/pids_tut.js in your text editor (If you haven't already!)
2. Let's insert print("Hello World ^^"); to the brackets within the create function.
   1. This calls the print function with the argument "Hello World ^^". The print function will output the message in our Minecraft console.
3. Insert print("Goodbye World ^^;"); within the dispose function as well.

After insertion, your script file should look something like this:

function create(ctx, state, pids) {
    print("Hello World ^^");
}

function render(ctx, state, pids) {
    // Your custom logic here...
}

function dispose(ctx, state, pids) {
    print("Goodbye World ^^;");
}

After that, we can press the keybind F3+T in Minecraft to reload our resource pack.

Now look at your game console log, you should the following message:

[Scripting] Hello World ^^
[Scripting] Hello World ^^

Notice how the message is printed 2 times? That's because PIDS in JCM (and MTR mod for that matter) are constructed in a way where each side is drawn separately.

Therefore a normal PIDS would call the create function 2 times. This is normal behavior, you didn't do anything wrong!

Next, let's try going very far away from the PIDS, to the point where you can visually no longer sees them. You will then notice the following 2 messages shows up in the console:

[Scripting] Goodbye World ^^;
[Scripting] Goodbye World ^^;

There you have it, a very simple Hello World script running in JCM.

So this concludes the Scripted PIDS tutorial, I hope that...

No where are you going!

ok I am sorry :<

Now let's actually draw the "Hello World" text onto the PIDS, because printing to the game console isn't considered exciting for most players apparently.

We can insert the following code to the render function to draw a text with the content Hello World:

function render(ctx, state, pids) {
    Text.create().text("Hello World").draw(ctx);
}

If this looks confusing, we can also split it line by line in the code:

function render(ctx, state, pids) {
    Text.create()
    .text("Hello World")
    .draw(ctx);
}

Essentially this code:

• Creates a text object
• Set its text content to Hello World
• Draw it to the game! (ctx is a provided parameter in the render function, more on that later)

Note that even after splitting it line by line, it is still valid code! This is because a statement is only considered finish by ending it with a semicolon (;). In fact, it is recommended to split up the lines to maintain readability.

Anyway now let's save the file, reload with F3+T and see what happens!

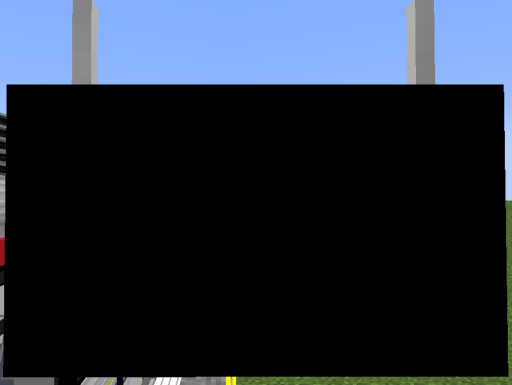

*checks date* It's not April Fools yet is it?

ok ok our text actually do actually get rendered. The only problem is that the default text color is black. And as you might have figured out, black-on-black may not necessarily be a very visible color combination.

So let's change our text to be rendered with the white color instead.

The hex color code for a solid white color is FFFFFF, so we can add the following line to our text:

.color(0xFFFFFF) (0x is used to depict that the number is a hexadecimal number)

So our text block should look something like this:

Text.create()
.text("Hello World")
.color(0xFFFFFF)
.draw(ctx);

Note that .draw() is the final command and you cannot append anything afterwards, so any setting must be appended before .draw().

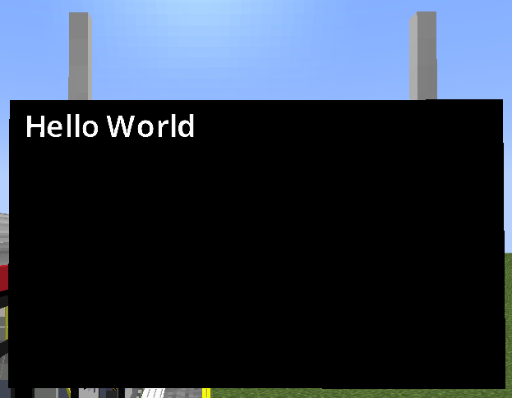

Reload the resource pack again and we now see our text!

With this logic, we can append a second Text block to render a 2nd text as well:

function render(ctx, state, pids) {
    Text.create()
    .text("Hello World")
    .color(0xFFFFFF)
    .draw(ctx);

    Text.create()
    .text("Joban Client Mod v2!")
    .color(0xFFFFFF)
    .draw(ctx);
}

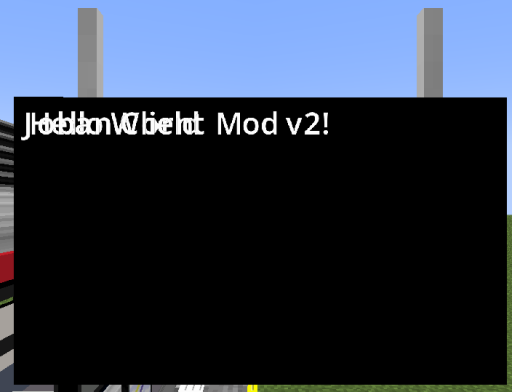

I mean it technically did render twice...

But now they are overlapping and it's hard to see, let's move each of them apart.
We can use the .pos(x, y) command to set the position of an element.

By default, a text have a height of 9, so we can append .pos(0, 9) to set the text position to 9 unit downwards:

function render(ctx, state, pids) {
    Text.create()
    .text("Hello World")
    .color(0xFFFFFF)
    .draw(ctx);

    Text.create()
    .text("Joban Client Mod v2!")
    .color(0xFFFFFF)
    .pos(0, 9)
    .draw(ctx);
}

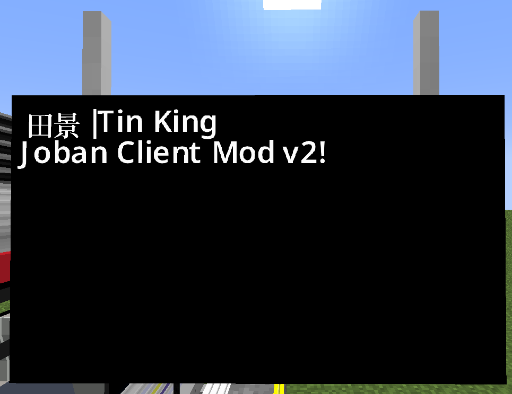

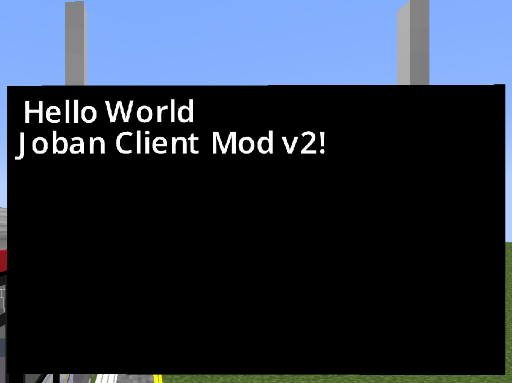

Does the text look a bit weird?

You may have noticed the J sticking out like a sore thumb, this is unfortunately due to Minecraft's imperfection when rendering TTF font.
It will work fine if you switch to Minecraft font or with most other text combination

Rendering Arrivals

During the tutorial, you might have noticed the pids object in the create/render/dispose function. This represents our PIDS object, where we can obtain arrivals and more from there.

We can get a list of arrivals with pids.arrivals(), and then obtain the n^th arrival info with the .get(n) function.

So to obtain the first arrival entry, we can do so like this:

function render(ctx, state, pids) {
    let firstRowArrival = pids.arrivals().get(0);
    // ... rest of your code

Remember, JavaScript is 0-based index. The first number starts from 0, then 1, and so on and so fourth...

Now that we have obtained our first arrival entry, we can obtain a variety of information with it, includeing it's route/LRT number, arrival and departure time, the route it's running and much more!

You may refer to the PIDS Scripting Documentation for more information, but we will also cover some of it in this tutorial.

At the moment we are only interested in getting the destination (Where the train is going). We can do that by calling the destination() function in our arrival entry:

function render(ctx, state, pids) {
    let firstRowArrival = pids.arrivals().get(0);
    let firstRowDestination = firstRowArrival.destination(); // This is a string!
    // ... rest of your code

And now we can replace our previous Hello World text content with firstRowDestination:

function render(ctx, state, pids) {
    let firstRowArrival = pids.arrivals().get(0);
    let firstRowDestination = firstRowArrival.destination();

    Text.create()
    .text(firstRowDestination)
    .color(0xFFFFFF)
    .draw(ctx);

    Text.create()
    .text("Joban Client Mod v2!")
    .color(0xFFFFFF)
    .pos(0, 9)
    .draw(ctx);
}

However before we continue, we now have a bit of road block developing:

1. We are obtaining the first arrival here, but what if we don't have a first arrival? What if there's no train running? What if the client is still fetching the arrival infos?
2. Imagine a script filled with Text.create(), how would you be able to easily tell which text is which?

Let's tackle the 2nd problem first. One way to do it is to add JavaScript comments with // or /* */. However JCM also reserved a slot for comment, and that is within the Text.create(string) function. So as an example, you can do the following:

Text.create("1st row destination") // <----
.text(firstRowDestination)
.color(0xFFFFFF)
.pos(0, 0)
.draw(ctx);

The "1st row destination" text (in the above example) is purely cosmetic, and you can write any string within that. As such, this could be served as a slot for commenting. Whether this is preferable depends on your personal preferences.

Now back to the first problem, you may have already noticed some error popping up in your console log during some part of the tutorial. This is because we are trying to obtain a non-existent arrival.

For that, we can add a null check to ensure that the arrival exists first:

function render(ctx, state, pids) {
    let firstRowArrival = pids.arrivals().get(0);
    if(firstRowArrival != null) { // Check if arrival exists first
        let firstRowDestination = firstRowArrival.destination();

        Text.create("1st row destination")
        .text(firstRowDestination)
        .color(0xFFFFFF)
        .pos(0, 0)
        .draw(ctx);
    }
    // ... rest of the text
}

Great! However while this might be fine for rendering 1 line of arrival, in practice we often have to display much more than that.
While we could just copy and paste these codes, they are error-prune and a mess to modify.

Making matters more complicated, different PIDS Block have it's own number of arrival entry it supports.
For example, RV PIDS supports 4 rows, while PIDS 1A only supports 3 rows.

One solution is to change this to a for-loop. We can use pids.rows to obtain how many rows the current PIDS block supports:

function render(ctx, state, pids) {
    for(let i = 0; i < pids.rows; i++) { // Set i to 0. i++ if i < pids.rows, otherwise don't run this anymore
        let arrival = pids.arrivals().get(i); // <---- Obtain nth row arrival
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(arrival.destination())
            .color(0xFFFFFF)
            .pos(0, i*9) // <--- nth row * text height
            .draw(ctx);
        }
    }
}

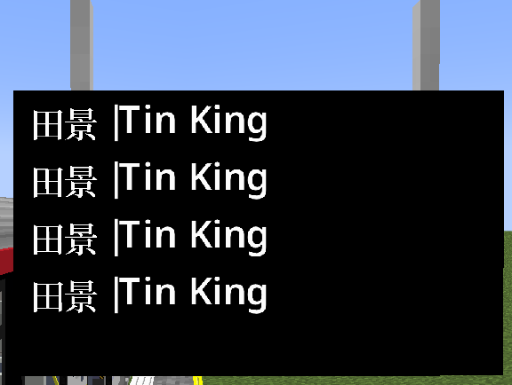

The runs everything within the for loop for however many rows the pids has, setting the i variable to the n^th time our code is executed.

As such, we can use i to determine our Y position as well as which arrival to obtain.

Of course, if your layout is not designed to be dynamic, and are designed for a specific PIDS, you can hardcode a number in (e.g. 4) instead of pids.rows.

Text size & Language Cycle

To resize a text, we can use the .scale(factor) function to scale the text to be larger or smaller.

In our case, we will scale it by 1.25x:

/// ... code before
Text.create("Arrival destination")
.text(arrival.destination())
.color(0xFFFFFF)
.pos(0, i*9)
.scale(1.25) // Scale the text by 1.25x
.draw(ctx);
/// ... code after

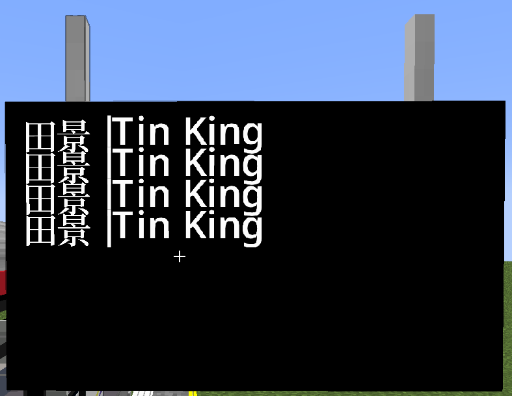

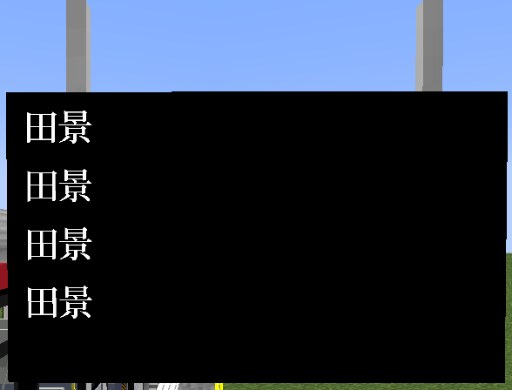

The text does seems to be larger! But they are now too close to each other, and are really uncomfortable to look at.

This is because earlier, we set the position of the text to be .pos(0, i*9). However since our text is scaled, the text height is no longer 9, but instead 9 (text height) * 1.25 (our scale) = 11.25.

While we could just change it to 11.25, let's leave even more padding between each row for a better-look.
Let's say each row should go 16.75 unit downwards:

/// ... code before
Text.create("Arrival destination")
.text(arrival.destination())
.color(0xFFFFFF)
.pos(0, i*16.75)
.scale(1.25)
.draw(ctx);
/// ... code after

Much better! The last thing we have to deal with is handling different languages. Currently it's just displayed with everything including the pipe character, which is used by the MTR mod as a way to split languages apart.

To cycle the string, we can wrap our destination string with the TextUtil.cycleString(str) function.

TextUtil is a utility method provided our of the box for us, you can check the Utilities page for more helper functions like these.

/// ... code before
Text.create("Arrival destination")
.text(TextUtil.cycleString(arrival.destination()))
.color(0xFFFFFF)
.pos(0, i*16.75)
.scale(1.25)
.draw(ctx);
/// ... code after

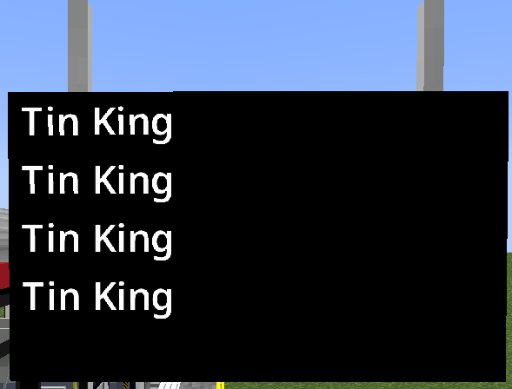

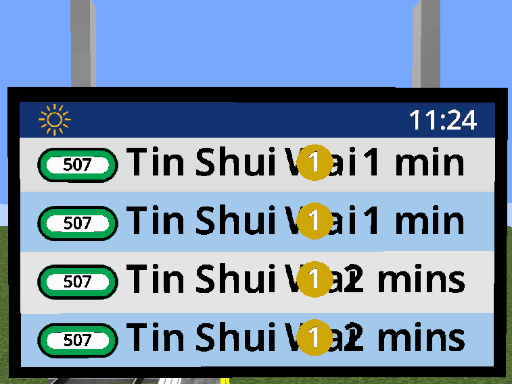

And there we go, now the text cycles!

So to re-cap, our code should look similar to this:

function create(ctx, state, pids) {
    print("Hello World ^^");
}

function render(ctx, state, pids) {
    for(let i = 0; i < pids.rows; i++) {
        let arrival = pids.arrivals().get(i);
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(TextUtil.cycleString(arrival.destination()))
            .color(0xFFFFFF)
            .pos(0, i*16.75)
            .scale(1.25)
            .draw(ctx);
        }
    }
}

function dispose(ctx, state, pids) {
    print("Goodbye World ^^;");
}

v1: Not too bad after-all!

In the last section we've spent all that time rendering some black-on-white text, but still it doesn't really look good.

The next thing we are going to do is to draw a background alongside the PIDS text. This is very similar to the way we make text, but we use Texture instead, as well as the .texture(id) function to specify the image we would draw:

/// ... code before
function render(ctx, state, pids) {
    for(let i = 0; i < pids.rows; i++) {
        let arrival = pids.arrivals().get(i);
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(TextUtil.cycleString(arrival.destination()))
            .color(0xFFFFFF)
            .pos(0, i*16.75)
            .scale(1.25)
            .draw(ctx);
        }
    }

    Texture.create("Background")
    .texture("jsblock:textures/block/pids/rv_default.png") // (1)!
    .draw(ctx);
}
/// ... code after

1. jsblock:textures/block/pids/rv_default.png is the default image used for the built-in Railway Vision PIDS that comes with JCM.
   Of course, you are welcomed to bring your own images as well!

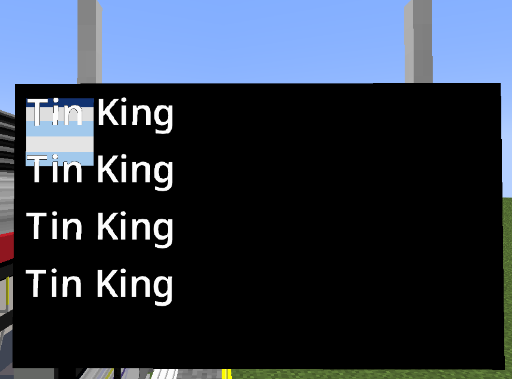

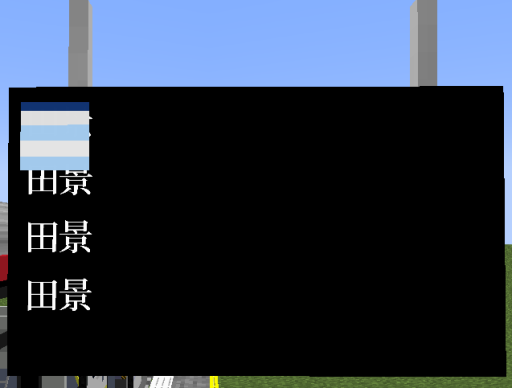

Now reload the resource pack and...

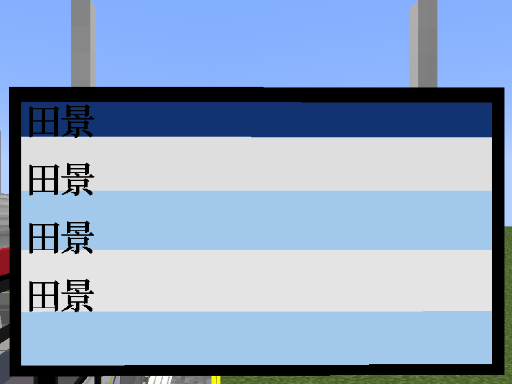

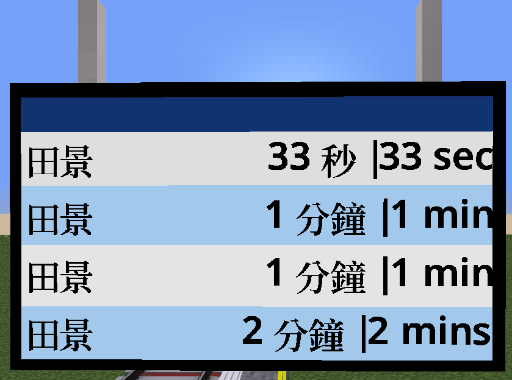

On the surface it seems that the only thing wrong is the positioning & sizing (Which to be fair, we didn't tell JCM the size, so it uses the default). However another problem is that the image is appearing over the text, which is not what you want for a background image.

Stacking Order

In JCM, every elements that gets drawn are rendered with their z-position incremented ever so slightly.

Therefore, the 2nd element to be drawn is placed in-front of the 1st element.

So the rule is pretty simple: Whoever gets rendered later are put in-front, and whoever gets rendered earlier are behind the one who are rendered later.

With this logic, let's move our background image to the top of the render function, so that everything afterwards are drawn on in-front of the background.

/// ... code before
function render(ctx, state, pids) {
    Texture.create("Background")
    .texture("jsblock:textures/block/pids/rv_default.png")
    .draw(ctx);

    for(let i = 0; i < 4; i++) {
        let arrival = pids.arrivals().get(i);
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(TextUtil.cycleString(arrival.destination()))
            .color(0xFFFFFF)
            .pos(0, i*16.75)
            .scale(1.25)
            .draw(ctx);
        }
    }
}
/// ... code after

Now we just need to resize the texture to stretch it through the entire screen.

This can be done through the .size(width, height) function:

/// ... code before
Texture.create("Background")
.texture("jsblock:textures/block/pids/rv_default.png")
.size(80, 80)
.draw(ctx);
/// ... code after

Hmm 80, 80? That's a square, not a rectangle like our PIDS screen?

That's correct, this code indeed does not cover the entire screen. A Railway Vision PIDS uses the size 136w x 76h.

While we could just change the size to 136, 76, we can also obtain the size of the PIDS directly with the pids variable passed to our render function, specifically pids.width and pids.height:

/// ... code before
Texture.create("Background")
.texture("jsblock:textures/block/pids/rv_default.png")
.size(pids.width, pids.height)
.draw(ctx);
/// ... code before

This is useful both for readability purposes, as well as factoring in different sizes of PIDS. (An LCD PIDS screen is slightly smaller at 133w x 72h)

And let's not forget setting our destination text color to black (0x000000, or just remove .color entirely as it's black by default anyway), as the background is now bright.

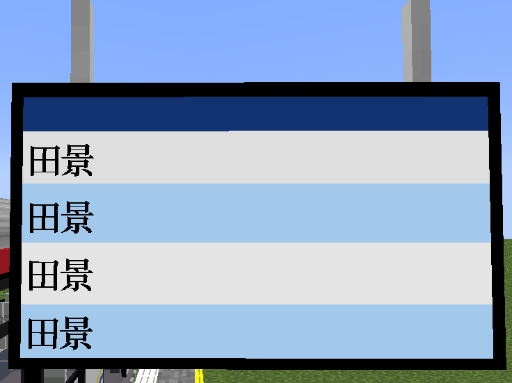

The background image itself appears to include a header bar, which our arrival text has not accounted for.

A very straight forward fix is to just offset the text's Y position. To save you time, I have tested the value for you, and it is 13 is the sweet spot :)

/// ... code before
Text.create("Arrival destination")
.text(TextUtil.cycleString(arrival.destination()))
.pos(0, 13+(i*16.75))
.scale(1.25)
.draw(ctx);
/// ... code before

Ok now things are getting crazy. Imagine if you give this to a friend for a reference, or even just you reading this a year later. Could you tell what that 13 is for, and why i*16.75?

In such case, we should declare a variable to give our value a name:

function render(ctx, state, pids) {
    // ...background

    for(let i = 0; i < 4; i++) {
        let rowY = 13 + (i*16.75);

        let arrival = pids.arrivals().get(i);
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(TextUtil.cycleString(arrival.destination()))
            .pos(0, rowY)
            .scale(1.25)
            .draw(ctx);
        }
    }
}

As for the 13, since it won't be changed at runtime, we can use the const keyword to indicate that this is a constant variable and would never change:

const HEADER_HEIGHT = 13;

function create(ctx, state, pids) {
    // ... code
}

function render(ctx, state, pids) {
    // ... code before
    for(let i = 0; i < pids.rows; i++) {
        let rowY = HEADER_HEIGHT + (i*16.75);
        let arrival = pids.arrivals().get(i);
        // ...
    }
    // ... code after
}
// ... code

Neat!

Estimated Arrival Time Text

Showing the destination is cool, but wouldn't it be even better if players can see when does the next train arrives? Let's add that as well, following the regular RV PIDS Layout which aligns the text to the right-most screen.

As we have learnt previously, we can get the width of the pids via pids.width, so what we could do is to set the text's x position to the width so that it renders at the end of the screen.

function render(ctx, state, pids) {
    // ... code for drawing background
    for(let i = 0; i < pids.rows; i++) {
        let rowY = HEADER_HEIGHT + (i*16.75);
        let arrival = pids.arrivals().get(i);
        if(arrival != null) {
            Text.create("Arrival destination")
            .text(TextUtil.cycleString(arrival.destination()))
            .pos(0, rowY)
            .scale(1.25)
            .draw(ctx);

            Text.create("Arrival ETA")
            .text("3 min") // Dummy ETA text for now
            .pos(pids.width, rowY)
            .scale(1.25)
            .draw(ctx);
        }
    }
}

Note

Here serves as another reminder that the contents we have rendered so far are drawn physically in the world.

JCM does not create a texture for you to render the screen on, as such your elements can go out of the screen entirely, even out of the PIDS block itself.

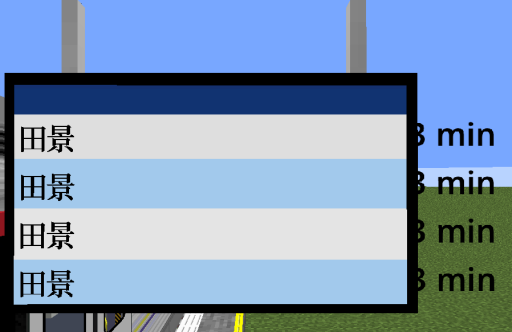

... oh well that's a bit more than the end of screen ^^;

Now the code is indeed doing what we told it to do: Render text at the end of the screen.
However the issue is that under the default text configuration, the text is left-aligned, and thus the x we give it is just the starting point of the text.

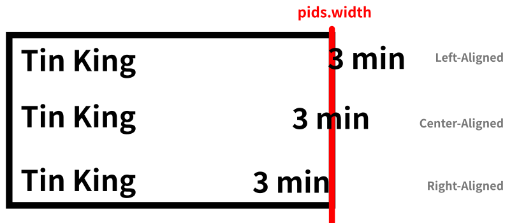

Illustration of the issue we are facing

To fix the issue, we need to right-align the text, to do that we can simply append .rightAlign() to our text:

pids_tut.js

// ... code before
Text.create("Arrival ETA")
.text("3 min")
.pos(pids.width, rowY)
.scale(1.25)
.rightAlign()
.draw(ctx);
// ... code after

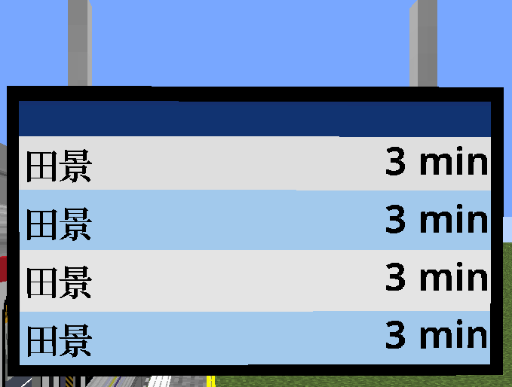

The text margin is still not perfect, but it's just a matter of doing some subtraction, which we can do later.

Now let's move on to functionality:
As we have previously established, we can obtain the arrival's destination text with the destination() function.

An arrival entry have more functions than that. For a full list you can check ArrivalWrapper.

For our purposes, we are going to use the arrivalTime() function. This returns the epoch time the train is arriving at (in millisecond), or in other word, how many millisecond (1/1000th of a second) have passed since 1 January 1970.

This in of itself is not that useful, but we can use JavaScript's Date Object Date.now() to obtain the same thing, except referring to the time now. This also means we can use that to compare the time between now and the arrival time!

pids_tut.js

// ... code before
let eta = arrival.arrivalTime() - Date.now(); // Difference between our estimated arrival time (future) and now
Text.create("Arrival ETA")
.text(eta) // Change the text to render our eta
.pos(pids.width, rowY)
// ... code after

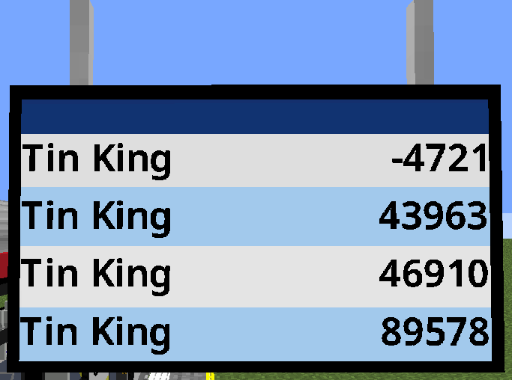

Now you should see umm... big numbers rapidly counting down:

If you are lucky enough to have a train stopping during this (As seen above), you'll see that the number rolls to the negative. This is because the train have already arrived.

So for example -4721 here means that the train have already arrived for 4.721 second, while 43963 means that the train will arrive in 43.963 second, since the number is represented in millisecond (1/1000th of a second).

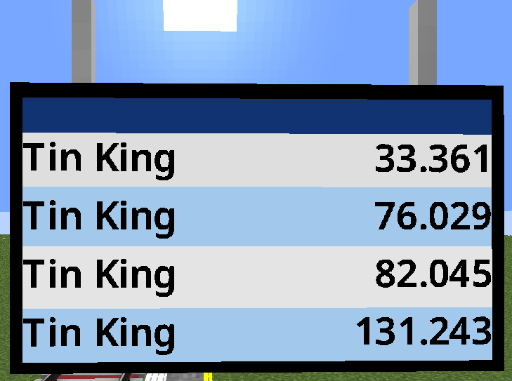

As such, we can obtain the second remaining by dividing it by 1000:

pids_tut.js

// ... code before
let eta = (arrival.arrivalTime() - Date.now()) / 1000;
Text.create("Arrival ETA")
.text(eta)
// ... code after

Now we just need to round the number to get a full integer:

pids_tut.js

// ... code before
let eta = Math.round((arrival.arrivalTime() - Date.now()) / 1000);
Text.create("Arrival ETA")
.text(eta)
// ... code after

We could continue implementing like this, however I'll leave this as an exercise to the viewer after finish this tutorial :)

Instead for now we can go the slightly lazy route: JCM have included a helper script by default, namely PIDSUtil, which have a function to automatically format ETA text.

Here, we can use the include() function to import the PIDSUtil script:

include(Resources.id("jsblock:scripts/pids_util.js")); // Built-in script shipped with JCM
// ... Rest of the script

Note

We can only include scripts while JCM is parsing the script (i.e. Outside of function). It is not possible to put them in the render function for example, as by that time JCM has already finished parsing the entire script, and it's only calling your function.

Now that we have imported the script, we can now use it's function, PIDSUtil.getETAText(time: number):

pids_tut.js

// ... code before
Text.create("Arrival ETA")
.text(PIDSUtil.getETAText(arrival.arrivalTime()))
.pos(pids.width, rowY)
.scale(1.25)
.rightAlign()
.draw(ctx);
// ... code after

After reloading, you should see that it returns a raw string without any language separation. However more importantly the unit is correct. (mins/sec)

And as we have learnt from handling the destination text, we can wrap it with TextUtil.cycleString():

pids_tut.js

// ... code before
Text.create("Arrival ETA")
.text(TextUtil.cycleString(PIDSUtil.getETAText(arrival.arrivalTime())))
// ... code after

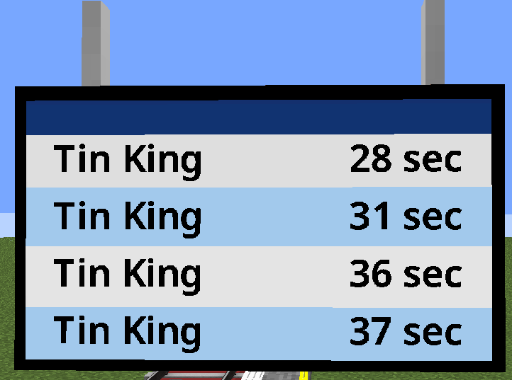

And finally to not start a war, let's apply some spacing to both the destination and ETA text so it doesn't lean along the edge:

pids_tut.js

// ... code before
Text.create("Arrival destination")
// ... code
.pos(8, rowY)
// ... code

Text.create("Arrival ETA")
// ... code
.pos(pids.width - 8, rowY)
// ... code after

v2: Light Rail, Light Rail Everywhere!

Now it's time to add the light rail route symbol.

First, let's move our destination text to the right, 30 unit to be exact, so we can reserve some space for our light rail symbol on the left:

pids_tut.js

// ... code before
Text.create("Arrival destination")
// ...
.pos(30, rowY)
// ... code after

Drawing the Light Rail Symbol

For reference, this is the symbol used for Hong Kong Light Rail Route:

This is a replica render of the symbol, but should look close-enough

It is consisted of a pill with white-background, followed by a thick route colored border, and a black border inside that.

To understand how we should approach this, let's take a look at the resource file provided in the tutorial resource pack, under assets/jsblock/textures/lrr.png:

The texture quality itself is... not the greatest, but let me be lazy while I can get away with it :P

Essentially this is just the above version, but without the centered white part, and the route color being white.

The reason why it's white is because we will be tinting the texture color to follow our route color.
An easier way to think of it is "how white the color is = how bright the color is".

This means that the white-part will be colored to our route's color, while the black border remains black, because it's brightness is essentially 0%. No matter how you tint black, it's still black.

As for the centered pill-shaped part, we have to draw it separately, as that part shall not be tinted with our route color. So let's get started!

pids_tut.js

// ... code before
Texture.create("LRT Circle Colored")
.texture("jsblock:textures/lrr.png")
.color(arrival.routeColor()) // Note this part!
.pos(5, rowY)
.size(23, 10)
.draw(ctx);

Text.create("Arrival destination")
// ... code after

Essentially this draws our texture jsblock:textures/lrr.png, with the color set (or tinted) to the arrival's route color. The rest is just stuff we have learnt in the past :D

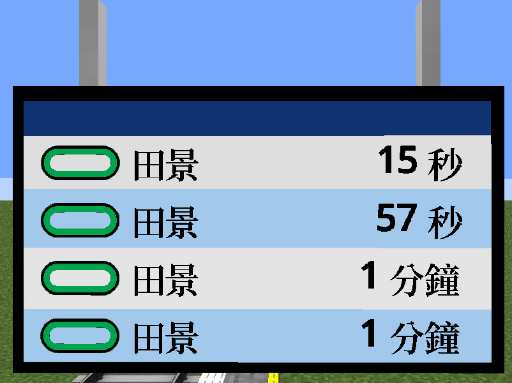

Nice, we are already 60% there. Now we just need to fill the white pill-shaped background.

There are multiple ways to achieve that, but the one we are going to use in the tutorial is to layer a white rectangle behind the pill-shaped symbol:

Imagine the green border as the border the white rectangle, which is placed behind our symbol

pids_tut.js

// ... code before
Texture.create("LRT Circle White")
.texture("mtr:textures/block/white.png")
.pos(7.5, rowY+1.5)
.size(18, 6)
.draw(ctx);

Texture.create("LRT Circle Colored")
.texture("jsblock:textures/lrr.png")
// ... code after

Again, remember first to draw, first to be covered. It needs to be drawn first before the colored pill, so that it can stay behind the colored pill.

(Self Note)

Maybe it does make sense to implement Rectangle alongside Text and Texture as well... but for now this will do!

Also worth nothing is the texture mtr:textures/block/white.png. This is a built-in texture in the MTR mod that's literally just a solid white color, which can coincidentally be used in this situation.

Nothing note-worthy other than that however. The position and size is already given for the sake of this tutorial, but in practice you may need some trial and error to get it right.

Now we just need to draw the route number, do it after we draw the pill so it stays on top:

pids_tut.js

// ... code before
Texture.create("LRT Circle Colored")
// ...
.draw(ctx);

Text.create("LRT Number Text")
.text(arrival.routeNumber())
.scale(0.55)
.centerAlign()
.pos(16.5, rowY+3)
.draw(ctx);
// .. code after

As for the platform number, here's the code as there's not a lot of things worth noting either:

pids_tut.js

// ... code before
Text.create("Destination Text")
// ...
.draw(ctx);

Texture.create("Platform Circle") // Draw our circle texture
.texture("jsblock:textures/block/pids/plat_circle.png") // Built-in to JCM
.pos(79, rowY - 1)
.size(10.5, 10.5)
.color(0xD2A808) // #D2A808 is color for HK LRT Network
.draw(ctx);

Text.create("Platform Circle Text") // Draw the text
.text(arrival.platformName()) // We can use platformName() to obtain the platform no.
.pos(84, rowY + 1)
.scale(0.9)
.centerAlign()
.color(0xFFFFFF) // #FFFFFF is white text
.draw(ctx);
// ... code after

Just to keep you in the loop (Pun intended), what we are doing so far is ran for each arrival row, because we have setup a for-loop at the top.

So if you are going to render thing one-time on the screen, then you should place the logic outside this loop~

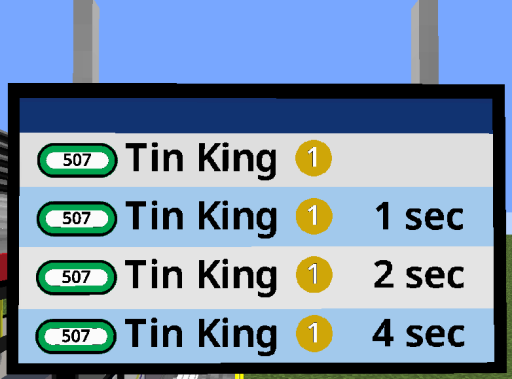

Not bad!

v3: The PIDS called, they wanted their header bar back

The header bar refers to the blue bar seen at the top.

The built-in RV PIDS preset in JCM contains a weather texture on the left, and a 24-hour clock on the right.

Weather Icon

There are 3 distinct texture for weather icon used in the default RV PIDS preset:

Image Preview	Texture ID	Used when
	jsblock:textures/block/pids/weather_sunny.png	There's no rain nor thunderstorm in the current world.
	jsblock:textures/block/pids/weather_rainy.png	There's rain, but not thunderstorm in the current world.
	jsblock:textures/block/pids/weather_thunder.png	There's a thunderstorm in the current world.

As such, we need to use different texture depending on the situation.

To check the weather for the current world, we can use the MinecraftClient class, which provides a couple of functions, namely MinecraftClient.worldIsRaining() and MinecraftClient.worldIsThundering().

We can then first declare a variable which represents the texture we are going to use, we are going to assign a value to it later:

pids_tut.js

// ... code for drawing background
let weatherImg; // (1)!

for(let i = 0; i < pids.rows; i++) {
    // ... code for drawing arrival
}

1. Note how we placed this outside the arrival for-loop. This is because we only want to draw this 1 time instead of per arrival.
   At the same time we need to draw this after the background, as we don't want the background to cover our image.

Now we can start checking from the order thunderstorm > raining > sunny, and assign the appropriate texture ID:

Checking Order

The reason why we have to check in this order is because when a thunderstorm is active, it is also considered raining.
As such we can't check if it's raining first, as otherwise it will always use the rainy texture.

And finally if it's neither raining nor thundering, then the sky has to be clear.

pids_tut.js

// ... code for drawing background
let weatherImg;

if(MinecraftClient.worldIsThundering()) {
    weatherImg = "jsblock:textures/block/pids/weather_thunder.png";
} else if(MinecraftClient.worldIsRaining()) {
    weatherImg = "jsblock:textures/block/pids/weather_raining.png";
} else {
    weatherImg = "jsblock:textures/block/pids/weather_sunny.png";
}

Now, let's draw the texture with our weatherImg variable:

pids_tut.js

    // ... code for checking weather icon
    weatherImg = "jsblock:textures/block/pids/weather_sunny.png";
}

Texture.create("Weather Icon")
.texture(weatherImg)
.pos(5, 0)
.size(10, 10)
.draw(ctx);

Adding a clock

A clock is still a text, as such let's create another text object.

To keep this tutorial in a reasonable length, we will use PIDSUtil again, which provides a utility function for us to call so we don't have to manually format the clock:

pids_tut.js

// ... code for drawing weather icon
.draw(ctx);

Text.create("Clock")
.text(PIDSUtil.formatTime(MinecraftClient.worldDayTime(), true)) // Note this here!
.color(0xFFFFFF)
.pos(pids.width - 5, 2)
.scale(0.9)
.rightAlign()
.draw(ctx);

The function parameter is PIDSUtil.formatTime(minecraftTime, shouldPadZero).

We can fill the minecraftTime parameter with MinecraftClient.worldDayTime(), which obtains the Minecraft time in tick.

As for shouldPadZero, we can set it to true so it returns something like 08:30 instead of 8:30.

Looking good!

v4: Go ham!

Right now things are looking very solid, but this is the MTR mod we are talking about, so things quickly falls apart when someone enter Llanfair­pwllgwyngyll­gogery­chwyrn­drobwll­llan­tysilio­gogo­goch as their station name.

"Surely no one would do that, and it's their problem if they do" Ok maybe you have a point, however now let's look at a real-world example, by renaming your destination station from 田景|Tin King to 天水圍|Tin Shui Wai

ummm send help.

Limiting text size

As we had learnt, we can set the size of a texture with size(w, h) function. What you might not know however is that the same can actually be done with Text, try it out:

pids_tut.js

Text.create("Arrival destination")
.text(TextUtil.cycleString(arrival.destination()))
.pos(30, rowY)
.size(36, 9)
.scale(1.25)
.draw(ctx);

After reloading, you'll notice that nothing has changed at all.

This is intended. The text area actually did got defined, however by default JCM don't take any action if the text went beyond the area.

To do so, we need to tell JCM what to do, with the stretchXY(), scaleXY(), wrapText() and marquee() function:

Function	Description	Preview
stretchXY()	The text will be stretched according to which axis it overflowed. So if it overflowed horizontally, the text will only be stretched horizontally
scaleXY()	The text will be stretched on both-axis to ensure that it stays within the defined size. Or in other word, it maintains the aspect ratio of the text.
wrapText()	Any text that overflowed will be rendered in the next line, this might be useful when rendering paragraphs of text.
marquee()	The text content is cropped to only show the visible section. The text will be continuously shifted to ensure that all portion of the text is shown.

For now, we'll go with scaleXY() as I think it looks nicer, you are free to try any other options however!

pids_tut.js

Text.create("Arrival destination")
.text(TextUtil.cycleString(arrival.destination()))
.pos(30, rowY)
.size(36, 9)
.scaleXY()
.scale(1.25)
.draw(ctx);

Nice. Now, we can also apply the same logic to other texts as well:

pids_tut.js

Text.create("LRT Number Text")
.text(arrival.routeNumber())
.scale(0.55)
.centerAlign()
.size(26, 9)
.scaleXY()
.pos(16.5, rowY+2.75)
.draw(ctx);

pids_tut.js

Text.create("Platform Circle Text")
.text(arrival.platformName()) // We can use platformName() to obtain the platform no.
.size(9, 9)
.scaleXY()
.pos(84, rowY + 1)
.scale(0.9)
.centerAlign()
.color(0xFFFFFF)
.draw(ctx);

pids_tut.js

Text.create("ETA Text")
.text(TextUtil.cycleString(PIDSUtil.getETAText(arrival.arrivalTime())))
.scale(1.25)
.size(30, 9)
.scaleXY()
.rightAlign()
.pos(pids.width - 8, rowY)
.draw(ctx);

v5: It's coming together

At this point if you are developing this PIDS Preset for your own use, you should have learned most of the basics, and you may start to modify the code to suit your need.

However if you are planning to publish a PIDS Preset for others to use, you have to also account for the variety of different configuration people uses. Most notably, each PIDS Block has it's own config, such as Custom Messages, Hide Arrivals, Hide Platform Number etc.

This section will go through how to take these configs into account as well.

Custom Message

We can obtain the custom message of the n^th row by using the function pids.getCustomMessage(n)

If a custom message exists, it will return the custom message.

Otherwise, it will return an empty string (" ")

Therefore, we can check whether that row have custom messages, and draw them differently depending on the situation:

pids_tut.js

// ... code before
let rowY = HEADER_HEIGHT + (i*16.75);
let customMsg = pids.getCustomMessage(i);
if(customMsg != "") { // Have custom message
    Text.create("Custom Text")
    .text(TextUtil.cycleString(customMsg))
    .scale(1.25)
    .size(pids.width-10, 9) // -10 to account for padding on both sides
    .scaleXY()
    .pos(5, rowY)
    .draw(ctx);
} else { // No custom message, continue the rest of arrival row logic
    let arrival = pids.arrivals().get(i);
    if(arrival != null) {
        Texture.create("LRT Circle White")
        // ... code after

Hide Platform Number

The isPlatformNumberHidden() function in the pids parameter returns whether platform number should be shown or not.
Therefore, we can wrap it inside an if statement, and only draw the platform number if it is not hidden.

pids_tut.js

// ... code before
if(!pids.isPlatformNumberHidden()) { // If platform number is not hidden
    Texture.create("Platform Circle")
    .texture("jsblock:textures/block/pids/plat_circle.png")
    // ... code for drawing platform circle & platform number text
}
// ... code after

Hide Arrival

Finally, we can use the pids.isRowHidden(n) function to determine whether arrival is set to hidden for that row.
Once again, we can wrap it in an if statement, and let's put it together with the arrival null check as well!

pids_tut.js

// ... code before
let arrival = pids.arrivals().get(i);
if(arrival != null && !pids.isRowHidden(i)) { // have arrival & row not hidden
    // ... Our arrival rendering logic

Conclusion

Congratulations! You have just built your custom PIDS preset from scratch!

Here's the full code for your reference (May differ slightly, but logic should mostly be same):

include(Resources.id("jsblock:scripts/pids_util.js")); // Built-in script shipped with JCM
const HEADER_HEIGHT = 13;

function create(ctx, state, pids) {
    print("Hello World ^^");  // Only for testing, can remove
}

function render(ctx, state, pids) {
    Texture.create("Background")
    .texture("jsblock:textures/block/pids/rv_default.png")
    .size(pids.width, pids.height)
    .draw(ctx);

    // Top Bar
    // Draw weather icon
    let weatherImg;
    if(MinecraftClient.worldIsThundering()) {
        weatherImg = "jsblock:textures/block/pids/weather_thunder.png";
    } else if(MinecraftClient.worldIsRaining()) {
        weatherImg = "jsblock:textures/block/pids/weather_raining.png";
    } else {
        weatherImg = "jsblock:textures/block/pids/weather_sunny.png";
    }

    Texture.create("Weather Icon")
    .texture(weatherImg)
    .pos(5, 0)
    .size(10, 10)
    .draw(ctx);

    Text.create("Clock")
    .text(PIDSUtil.formatTime(MinecraftClient.worldDayTime(), true))
    .color(0xFFFFFF)
    .pos(pids.width - 5, 2)
    .scale(0.9)
    .rightAlign()
    .draw(ctx);

    // Arrivals
    for(let i = 0; i < pids.rows; i++) {
        let rowY = HEADER_HEIGHT + (i*16.75);
        let customMsg = pids.getCustomMessage(i);
        if(customMsg != "") {
            Text.create("Custom Text")
            .text(TextUtil.cycleString(customMsg))
            .scale(1.25)
            .size(pids.width - (5*2), 9)
            .scaleXY()
            .pos(5, rowY)
            .draw(ctx);
        } else {
            let arrival = pids.arrivals().get(i);
            if(arrival != null && !pids.isRowHidden(i)) {
                Texture.create("LRT Circle White")
                .texture("mtr:textures/block/white.png")
                .pos(7.5, rowY+1.5)
                .size(18, 6)
                .draw(ctx);

                Texture.create("LRT Circle Colored")
                .texture("jsblock:textures/lrr.png")
                .color(arrival.routeColor())
                .pos(5, rowY)
                .size(23, 10)
                .draw(ctx);

                Text.create("LRT Number Text")
                .text(arrival.routeNumber())
                .scale(0.55)
                .centerAlign()
                .size(26, 9)
                .scaleXY()
                .pos(16.5, rowY+3)
                .draw(ctx);

                Text.create("Arrival Destination")
                .text(TextUtil.cycleString(arrival.destination()))
                .scale(1.25)
                .size(36, 9)
                .scaleXY()
                .pos(30, rowY)
                .draw(ctx);

                if(!pids.isPlatformNumberHidden()) {
                    Texture.create("Platform Circle")
                    .texture("jsblock:textures/block/pids/plat_circle.png")
                    .pos(79, rowY - 1)
                    .size(10.5, 10.5)
                    .color(0xD2A808) // Hong Kong LRT Network Color
                    .draw(ctx);

                    Text.create("Platform Circle Text")
                    .text(arrival.platformName())
                    .pos(84, rowY + 1)
                    .size(9, 9)
                    .scaleXY()
                    .scale(0.9)
                    .centerAlign()
                    .color(0xFFFFFF)
                    .draw(ctx);
                }

                Text.create("ETA Text")
                .text(TextUtil.cycleString(PIDSUtil.getETAText(arrival.arrivalTime())))
                .scale(1.25)
                .size(30, 9)
                .scaleXY()
                .rightAlign()
                .pos(pids.width - 8, rowY)
                .draw(ctx);
            }
        }
    }
}

function dispose(ctx, state, pids) {
    print("Goodbye World ^^;"); // Only for testing, can remove
}

What to do next

Now you can check out the Scripting Documentation to see what other functions and information you can obtain.

Additional Challenges

Some things are intentionally left-out in this tutorial, which can mostly be attributed to my laziness, but nevertheless they also serve as a great opportunity for a bonus challenge:

On multiple occasions we have used PIDSUtil to obtain for example ETA Text, formatting clock etc.

Now can you create your own function to replace the use of PIDSUtil?

PIDSUtil.getETAText(arrivalMs)

Tips

• Check if arrival second is <= 0, if so return an empty string.
• If arrival second less than 60, return <etaSec> 秒|<etaSec> sec.
• If arrival second less than 120, return <etaMin> 分鐘|<etaMin> min.
• Otherwise, return <etaMin> 分鐘|<etaMin> mins.
• Use Math.floor and Math.ceil to round down/up numbers.

PIDSUtil.formatTime(mcTime)

Tips

• Every in-game hour is 50 second in real life, or exactly 1000 ticks.
• Minecraft Time is 0 at 06:00, add 6000 ticks to the Minecraft time before doing calculations.
• Convert a number to string with .toString() function.
• Pad zero digits on a string with .padStart(2, '0').

Show car length if arrivals have mixed car length

Tips

• Read the PIDS Scripting Documentation to see whether there's a function to determine if arrivals have mixed car length.
• Use PIDSUtil.getCarText(carLength) function to obtain the car text.
• Append the car text to the ETA string with a | so that it cycles through both car-text and ETA-text!

Ending

This concludes the PIDS tutorial. If you have any question or feedback, please don't hesitate to send it either in the District of Joban discord server, in the JCM thread in the Minecraft Transit Railway server, or submit a github issue! See you by then~ ^-^

- LX
